Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales
Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales
Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales

Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales

Product Details:
Place of Origin: Henan, China
Brand Name: SHANGHE
Certification: CE/ISO
Model Number: SH-V19F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotation

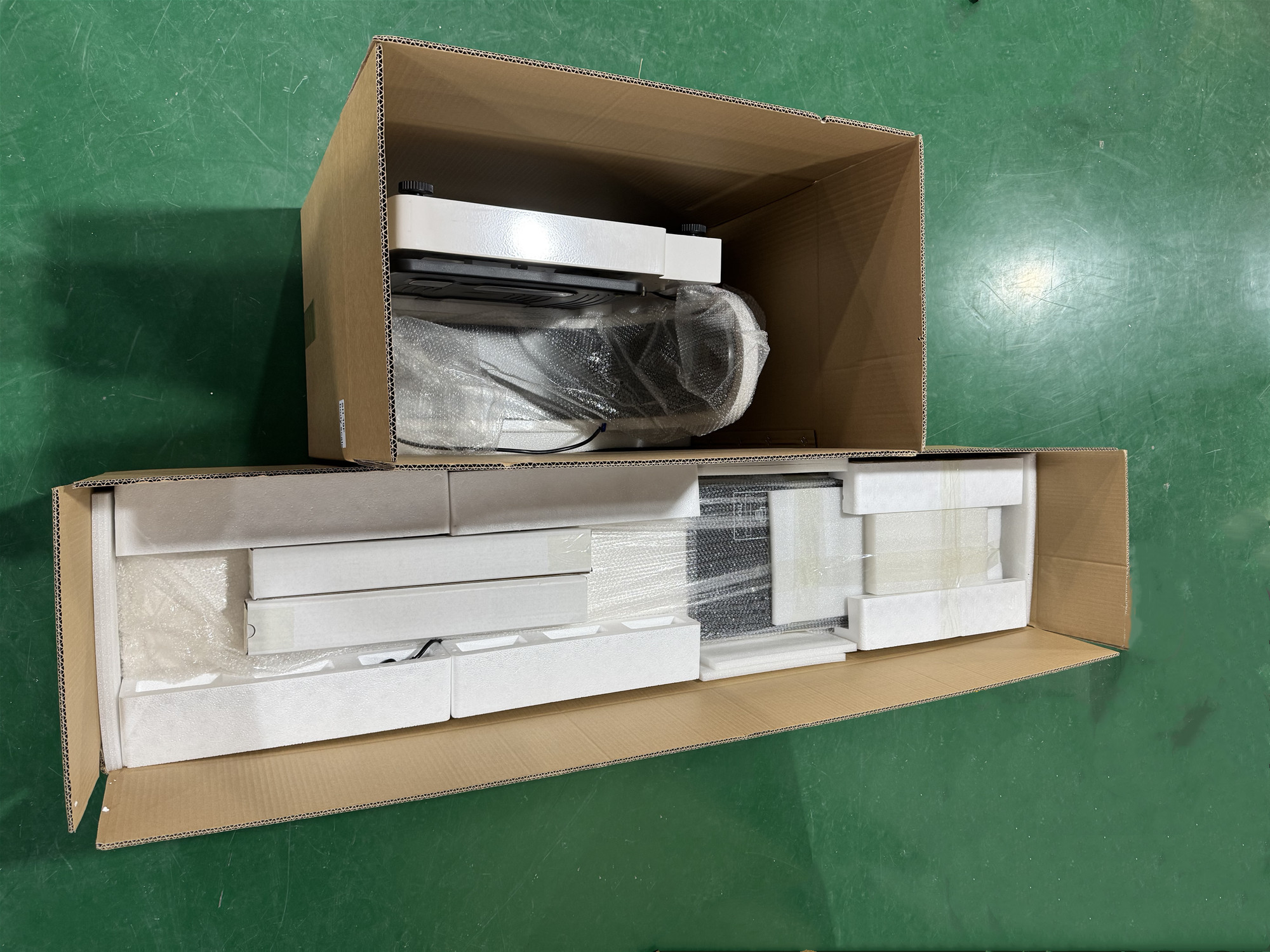

Packaging Details: 178*36*43cm（30kg）1piece ; 43*67*49cm(23kg)1piece
Delivery Time: 5-15 days
Payment Terms: D/A, D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability: 5000 sets per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: Best Bmi Body Composition Analysis Machine Kewords: Body Composition Analyzer
Frequency: 20KHz, 100KHz Material: Metal Cabinet
Impedance Measurement Range: 10-2000Ω Power Consumption: <25kw
Data Transfer: Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45 Applicable Age: 6-99 Years Old
Voltage: AC100V-240V/12V DC Power

Product Description

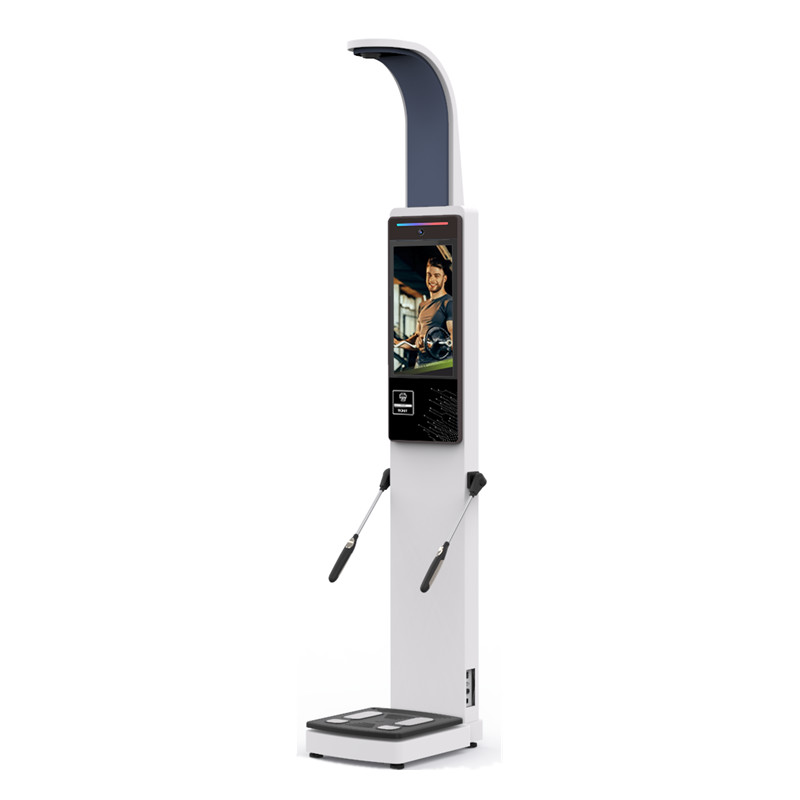

Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales





Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 0

Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 1

Product Specifications:



Model
SH-V19F


Measurement Items
Weight, height, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat
percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism,
waist-to-hip ratio, etc.



Body composition analyzer
8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
Frequency: 20KHz, 100KHz
Impedance measurement range: 10-2000Ω
Current: ≤420±20μA
Segments:5 parts (left arm, right arm, trunk, left leg, right leg)

Height Measurement
Measure range: 20-205cm
accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable
Measure mode: ultrasonic probe

Weight Measurement
Measure range: 5-500kg
accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Measure mode: precise balanced sendor
Display Mode
HD LCD 19-inch display touch system, play pictures and videos in standby mode
Report Output
Thermal printing/A4 Report/Test result send to mobile
Coin operated(Optional)
Intelligent multi-currency recognition
Power Supply Voltage
AC160v-250v,50HZ
Data Output Format
Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
Overall dimension
550*390*2350mm /LWH(mm)
Packing Size
180*49*22cm(20kg) 68*49*40cm(25kg) 0.33CBM
Identify(Optional)
Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc.





Certifications:

Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 2

Product Description:

SH-V19F Height Weight Body Fat Machine Functions:

1.Face recognition (optional)
2.Fully automatic measurement of height and weight, automatic sensing system
3.Ultrasonic technology to measure height (temperature compensation)
4.Precision balance beam resistance strain sensor
5.Intelligent calculation of BMl
6.HD LCD 19-inch display touch system, play pictures and videos in standby mode
7.Coin operated/paper money (optional)
8.8-electrode human bioelectrical impedance method (BIA)
9.High-speed thermal printing, automatic printing of measurement results
10.Displays indoor temperature and current time
11.Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
12.It can be connected with a computer, and the results are transmitted to the customer's Software.
13.Supports multiple languages and can switch languages on the screen.
14.Expansion: barcode/QR code, IC/ID card etc.
15.Report Output:Thermal printing, test result send to mobile, A4 printing/test result send to email/view reports on the cloud platform(optional)

Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 3
Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 4
Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 5

Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 6
Best Bioimpedancia Body Composition Analysis Machine Portable Body Fat Composition Scales 7
Our Advantages:
1. 24 hours to reply your inquiries and 72 hours solution response.
2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
